PCBA Circuit Board Usb Assembly Mobile Phone Charger QC3.0 Wall Charger Dual USB Charger AC Adapter pcb


Automatically identifies connected devices and their unique charging requirements, ensure a safe & efficient charging
Smart circuit design with Short Circuit /overheat/overcurrent/overcharging protection
Lightweight and easily portable for travel
Global Safety approval

Product Detail

Product Tags

OEM Mobile charger PCBA Circuit Board for QC3.0 Mobile phone charger Wall Charger Dual USB Charger AC Adapter pcb


APS support

1.  Custom PCBa

2. PCBa delivery 30 to 35 days

3. PCBa design conforms to CE CB FCC, IEC-62368 standard

Applications,  include  Wall switches, Wall Charger, Country Adapter, Travel Adapter,USB adatper, Plug in Charger and other charging product.

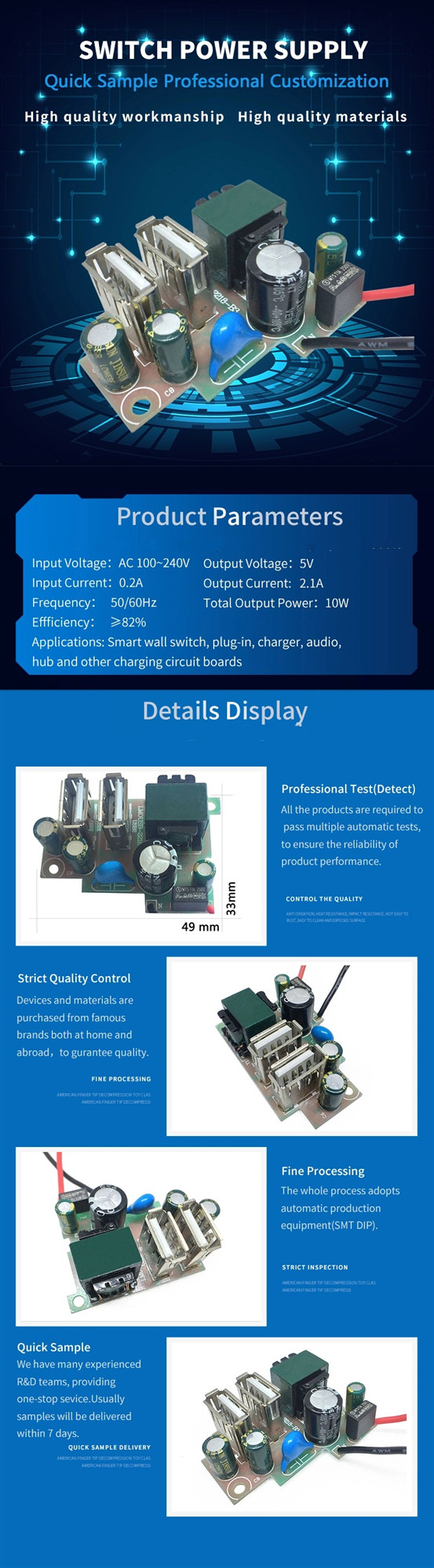

Product Name OEM Mobile charger PCBA Circuit Board for QC3.0 Mobile phone charger Wall Charger Dual USB Charger AC Adapter pcb
Model No APS-CB1204
Size 49mm*33mm*19mm
Input AC100V-250V
Output 5V 2.1A
Efficiency(Full load) 88.5%
Burn in 85-95% load, 40±5ºC, 4hours
High Port Testing 3KV High Port Testing
Certifications RoHS, Reach, CE, EMC, ErP compliance,LVD,
Protection Short Circuit /Over Current /OverCharging/Overheat Protection
Operating Temperature Range 0ºC-40ºC
Storage Temperature Range -20ºC- 65ºC
MTBF 10,000 hours above
OEM& ODM Provide Customized Service


1. Comprehensive Protection, high efficiency IC inside with protection circuit design,100% safe charging with advanced Surge protection, temperature control, and more advanced safety features keep you safe

2.  USB C supports Quick Charge 3.0 for compatible devices,  Intelligent power distribution, giving priority to computer power supply

3.  Incredible Portability, Compact size with a foldable plug for maximum portability.

4.  Universal Compatibility, Works for Smart phone/ Tablet/Ebook/ MP3/ MP4/ GPS/ USB Devices etc, excellently for charge all kinds of USB-C mobile device, tablet, and more.

5.High-Speed Charging


Compatible with Most USB-Enabled Devices

Samsung Galaxy S10 / S10+ / S10e / S9 / S9+ / S8 / S8+ / Note 9 / Note 8 / Note 7 etc.

IPhone 11 Pro Max / 11 Pro / 11 / XS / XS Max / XR / X / 8 Plus / 8 / 7 Plus / 7 / 6S / 6  /5, 5C, 5s, 4,4s, iPad Pro/Mini/Air, iPod

iPad mini 2 / 3 / 4, iPad Pro 10.5 inch etc.

HTC One 10 A9 X V S M9 M8, Kindle (Fire)

Huawei P30 Mate 30/ P20 Mate 20/P10 / Mate 9 / Mate 20X / Mate 20 Pro LG G7 / V30+, Google Pixel 4 / Pixel / Pixel 3XL, Nexus 5X / 6P, Sony XZ2 Premium, Sony XZ3, and more.

It can also charge External Battery Pack, GPS, PSP, PS4 Controller, Bluetooth Speaker / Headphones, Mp3 Players, and other USB Powered Devices.

Why Choose us

1. –Faster and safer charging with our advanced technology

   Latest Power Delivery and GaN Technology

2 More than 10 years experience for Certificated PCBA circuit board for Quick Charge Adatper, Car charger, and adapter experiences

3. Powerful R&D , Engineer Dept. for Technical Support ;

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation
